Folding Container House
The Folding Container House is a prefabricated modular housing unit constructed with a sturdy steel frame. Its side wall panels feature a folding design that can be folded downward for convenient transportation and storage. At the construction site, the sides can be rapidly unfolded and locked into place to create an immediately usable living space. Folding Container Houses are widely used on construction sites, in disaster relief camps, military barracks, and as temporary housing for events.
|
Unit Size |
5830mm*2500mm*2470mm |
|
Folded Height |
Folded Height |
|
Number Of Layers |
2 Layer |
|
Loading capacity |
1*40HQ=10 units |
Introduction
The folding container house is constructed from high-strength steel, with its structural frame connected by a robust hinge system, ensuring overall stability and durability. The folding joints feature strong sealing properties, safety, and structural integrity, allowing for repeated use. It is widely applied in construction camps, emergency shelters, temporary schools, clinics, and various other scenarios, making it an ideal choice for rapid deployment and flexible utilization. Contact us to obtain customized solutions and quotes, and quickly launch your modular building project.

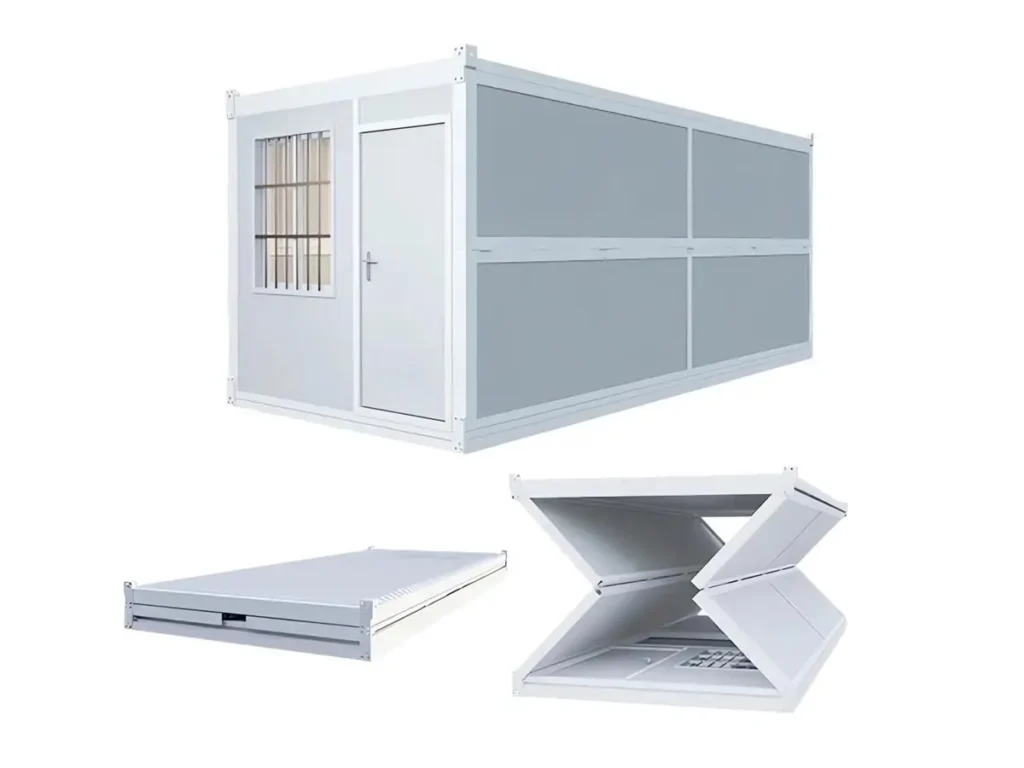

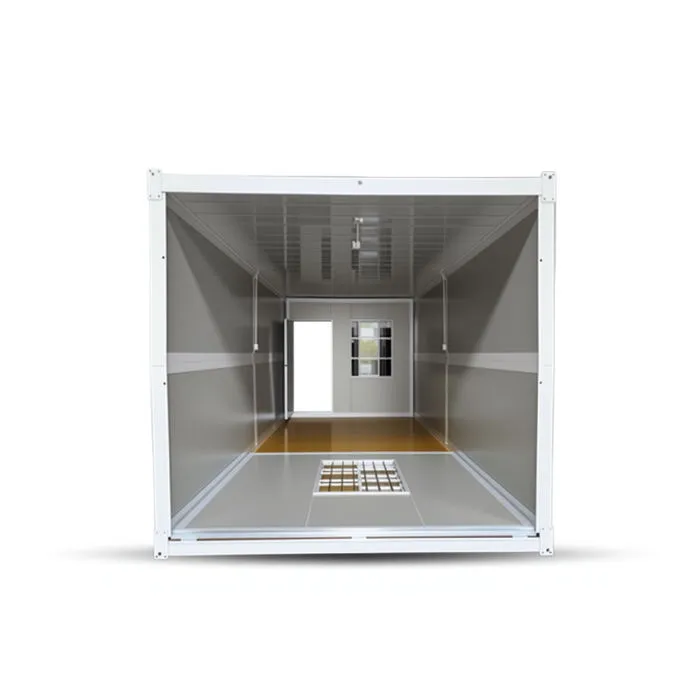

Standard Folding Container House

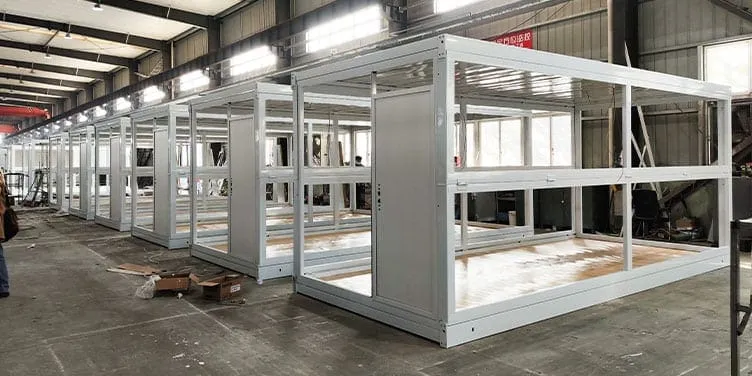

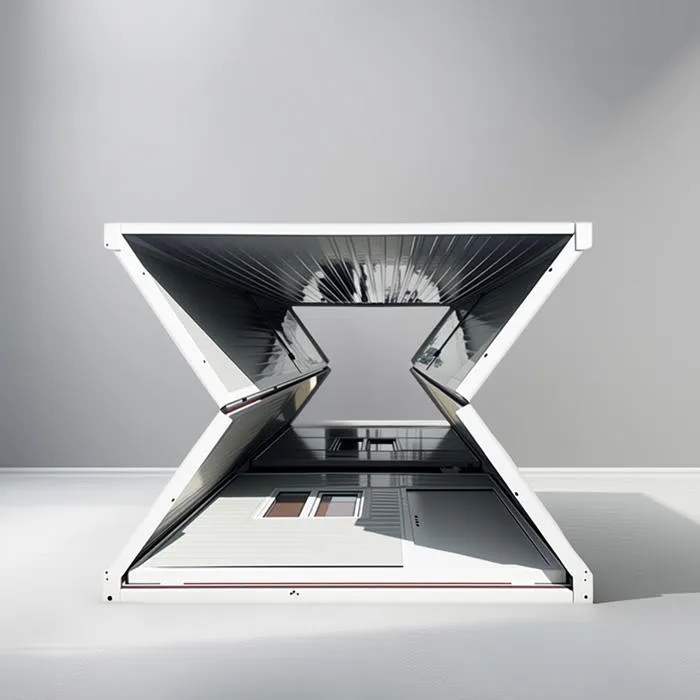

Folding Container House Steel Frame

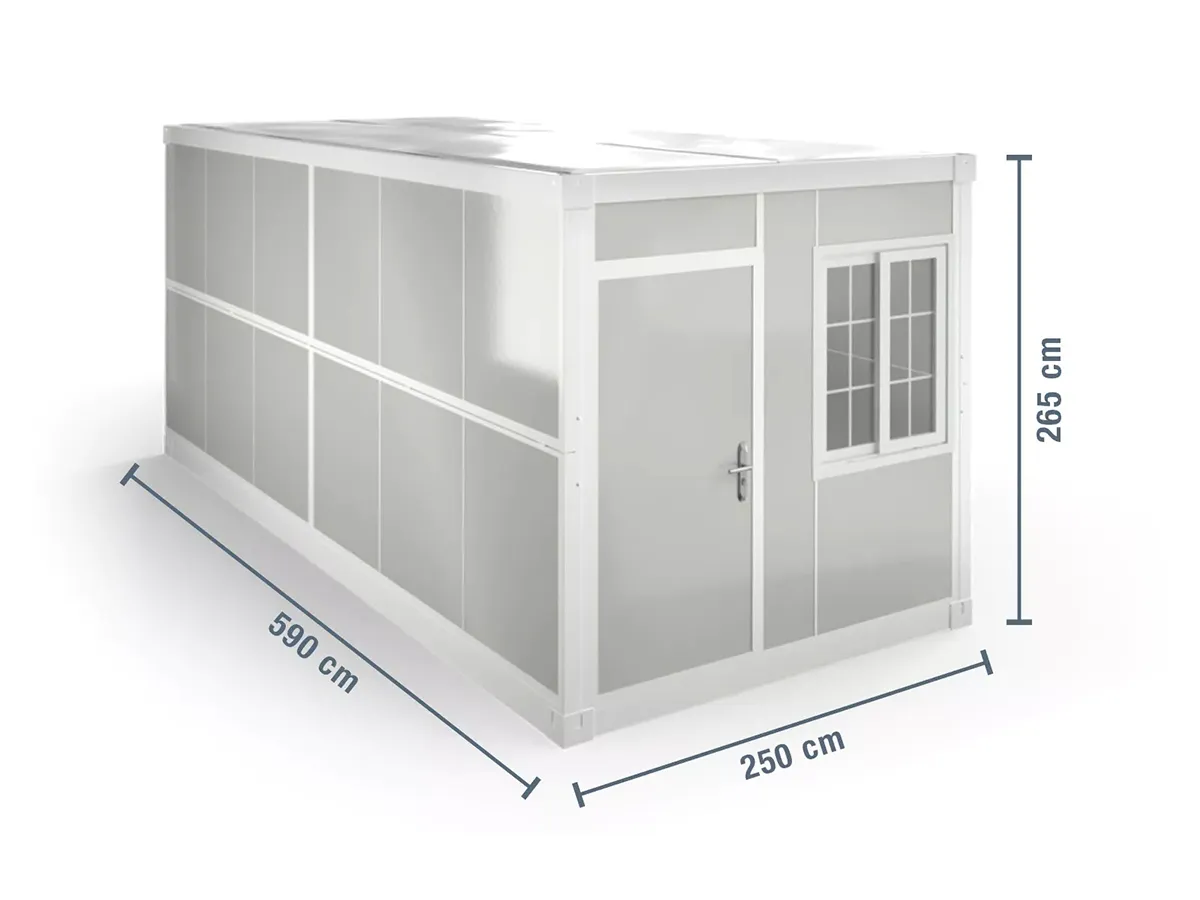

Folding Container House
Folding Container House
Interior Show
RuiLong folding container houses feature a well-designed interior layout that is neat and bright, ready for immediate use upon delivery. The structure boasts excellent overall sealing performance, providing wind and rain resistance to deliver a comfortable and secure living or working environment. The interior can be flexibly customized to client specifications, including partitioning, doors/windows, and electrical layouts. This versatility accommodates diverse applications such as compact living spaces, construction site offices, worker dormitories, school classrooms, and camp accommodations, offering an efficient, convenient, and integrated spatial solution for your project.

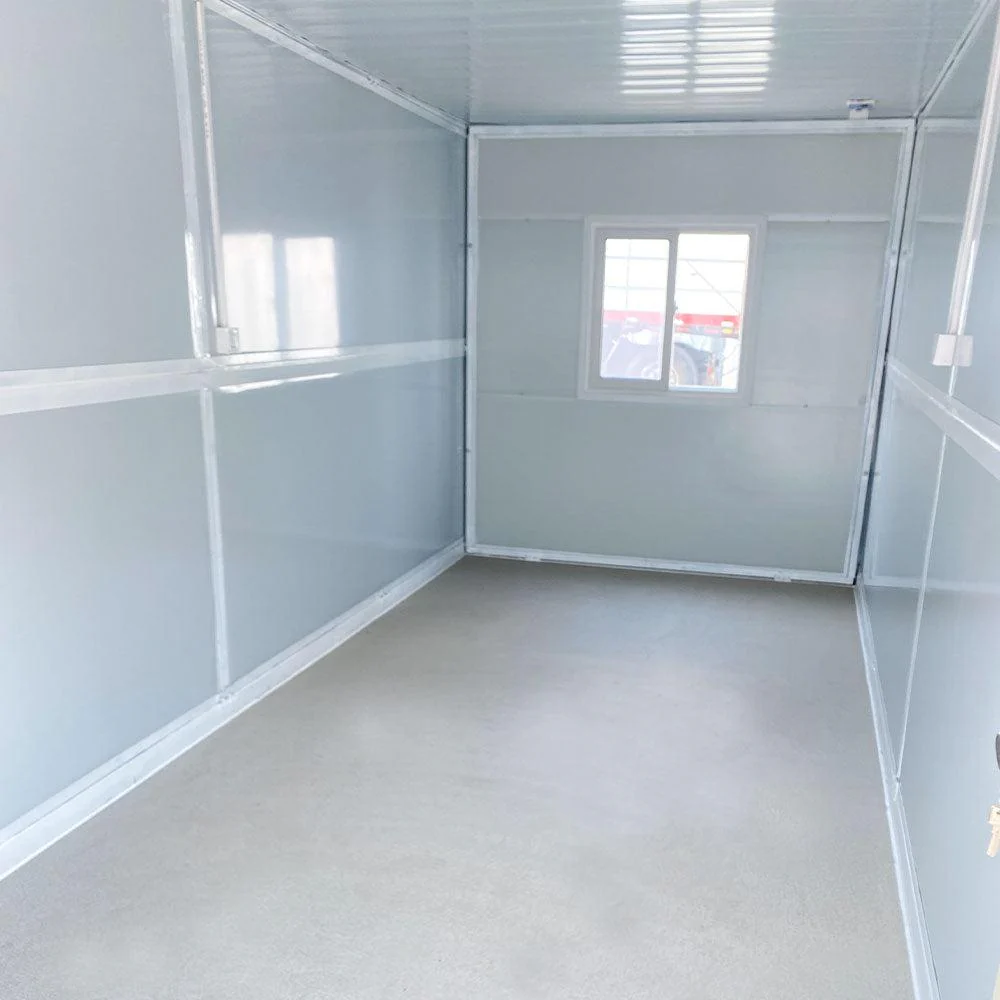

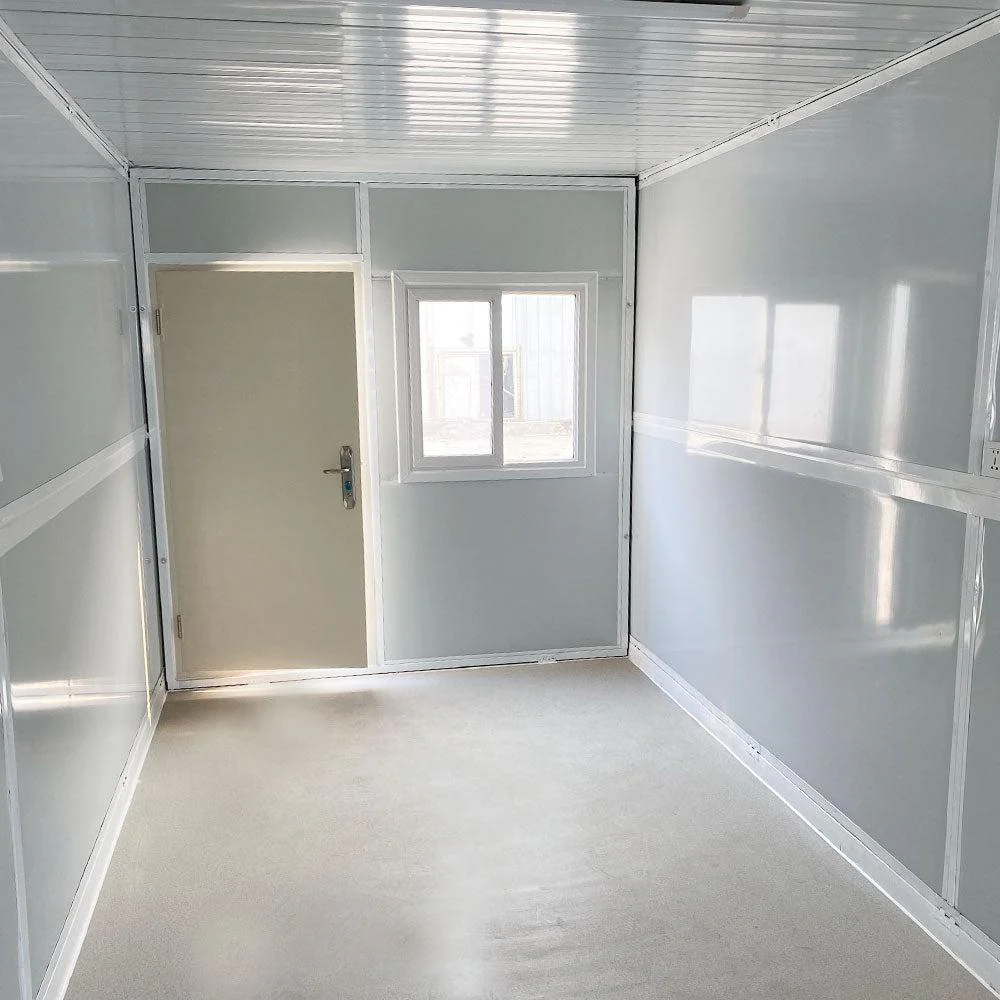

Folding container interior display

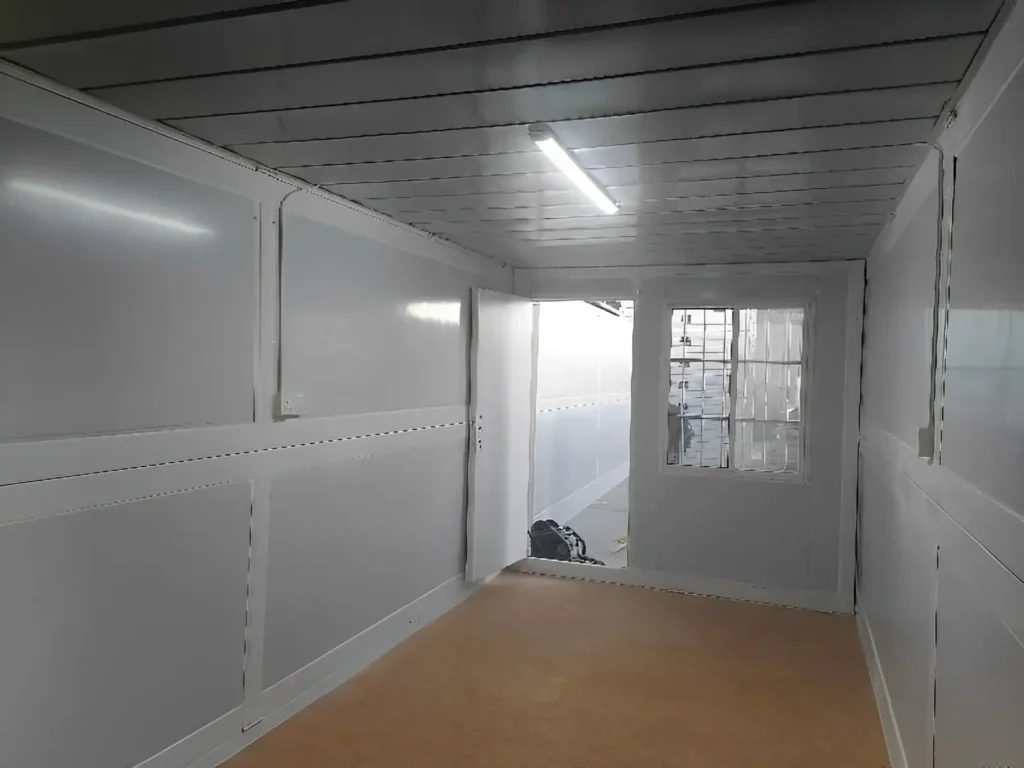

Folding container interior display

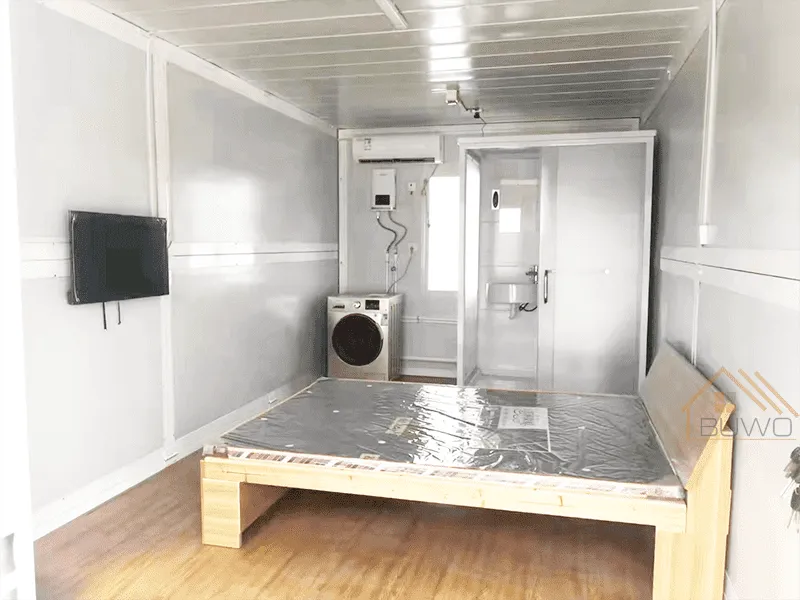

Folding container interior display
Folding container interior display
Structures
The structure of foldable container houses primarily consists of a roof frame, base frame, wall panels, door and window systems, hinge mechanisms, and sealing systems.
- Roof Frame: Constructed from high-strength steel welded together, it offers excellent load-bearing capacity and waterproofing performance.
- Base Frame: Structurally robust, it withstands ground loads and transportation pressures, providing a stable foundation for the house.
- Wall Panels: Designed with insulated sandwich panels, offering superior thermal insulation, fire resistance, and soundproofing.
- Doors & Windows: Featuring high-seal designs that provide effective ventilation and natural lighting while resisting wind and rain.
- Folding Hinges: As a core component, enables rapid folding and unfolding for convenient transportation and installation, saving space and time.
- Sealing System: Utilizes weather-resistant sealing strips and structural seals to eliminate leakage at joints, enhancing overall waterproofing and dustproofing performance.

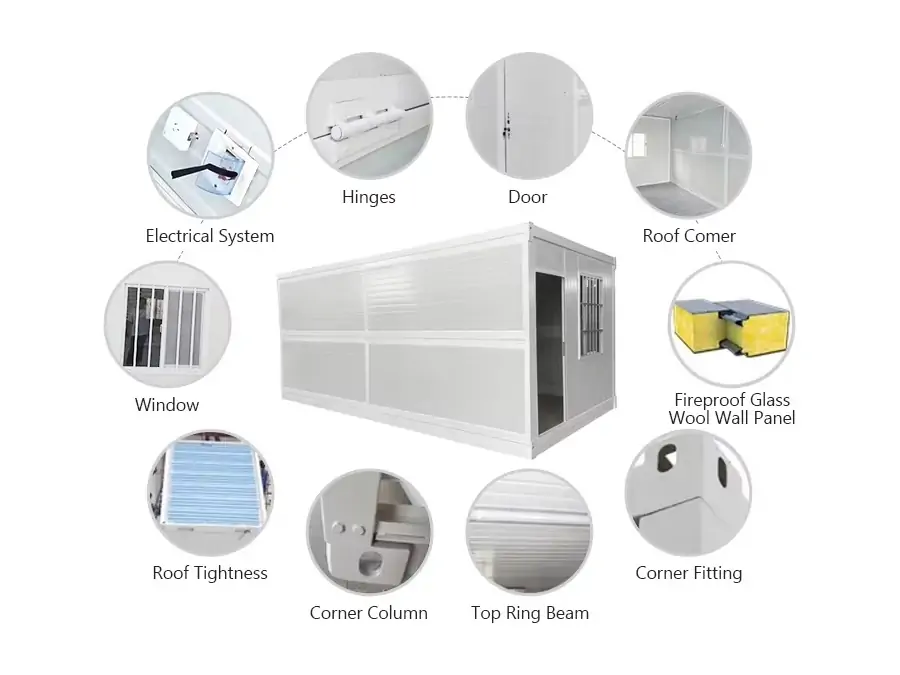

Folding Container House Structures
Specifications
Below are the standard technical specifications for RuiLong folding container houses. Customized designs for dimensions, layouts, and configurations can be provided to meet your project requirements, delivering the most suitable modular space solutions for your needs.
| Productspecifications | Folded Height | H=440mm |
| Loading capacity | 1*40HQ=10 units | |
| Length*Width*Height(mm) | 5830mm*2500mm*2470mm | |
| Roof Form | Flat Roof | |
| Number Of Layers | ≤2 layers | |
| Structure | Column | Specifications=50mm*160mm,Roller beam,Material Thickness=2.3mm, Material=Q235B |
| Roof Main Beam | Specifications=50*160mm,Roller beam,Material Thickness=2.3mm,Material=Q235B | |
| Roof Secondary Beam | Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.0mm, 6 Pices, Material=Q235B | |
| Ground Main Beam | Height=50*140mm, Roller beam, MaterialThickness=2.3mm,Material=Q235B | |
| Ground Secondary Beam | Galvanized Cold Rolled Section Steel C TypeMaterial Thickness=1.5mm, 9 Pices Material=Q235B | |
| Bolt | 8.8 Class High-Strength Bolts,6 | |
| Paint | Electrostatic spraying plastic powder bakingvarnish ≥80μm | |
| Roof | Roof Panel | EPS Color Steel Sandwich Panel, Thickness=50mm, Color=White-Gray, Fallsfreely into the water |
| Floor | Substrate | 18mm Fireproof Glass Magnesium Board |
| Insulation Cotton | 50mm Thickness Color Steel EPS Sandwich |
Application
Folding container houses are widely used in the following scenarios. All designs are fully customizable, including layout, dimensions, insulation layers, and interior configurations, to perfectly match your project requirements. Contact us today for your exclusive folding container house solution!
- Construction Site Offices
- Worker Dormitories & Staff Housing
- Temporary Classrooms & Schools
- Field Hospitals & Clinics
- Kitchens, Cafeterias & Dining Halls
- Public Restrooms & Shower Facilities
- Tourist Campgrounds & Mobile Homes
- Emergency Relief & Resettlement Shelters
Custom Folding container house
Tell us your specific requirements, our team will design the most suitable folding container house solution for your project. Contact us today for a customized quotation!
Advantages of Flat Pack container house

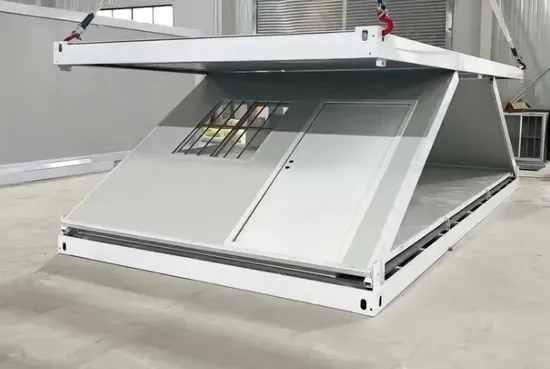

Quick installation saves time and boosts efficiency. The structure, doors, windows, and electrical systems of the foldable container house are pre-assembled in the factory. Upon arrival at the site, simply lift the roof and secure the beams—installation takes just minutes, significantly shortening the construction timeline.
Reusable with multiple folds
Featuring a patented thickened hinge design, the structure is robust and durable, withstanding thousands of repeated folding and unfolding cycles. This facilitates flexible relocation and reuse across different projects.
Superior Waterproofing and Corrosion Resistance
The arched overlapping roof design allows rainwater to drain naturally. S-shaped structural connections effectively prevent leaks, while galvanized steel ensures overall corrosion and rust resistance, making it suitable for diverse climates.
Flexible Layout and Multi-scenario Applications
Individual container units can be used independently or freely combined for expansion, supporting two-story stacking. Suitable for diverse uses including offices, worker dormitories, kitchens, dining halls, shower rooms, classrooms, and campsites.
Modular Structure Reduces Installation and Transportation Costs

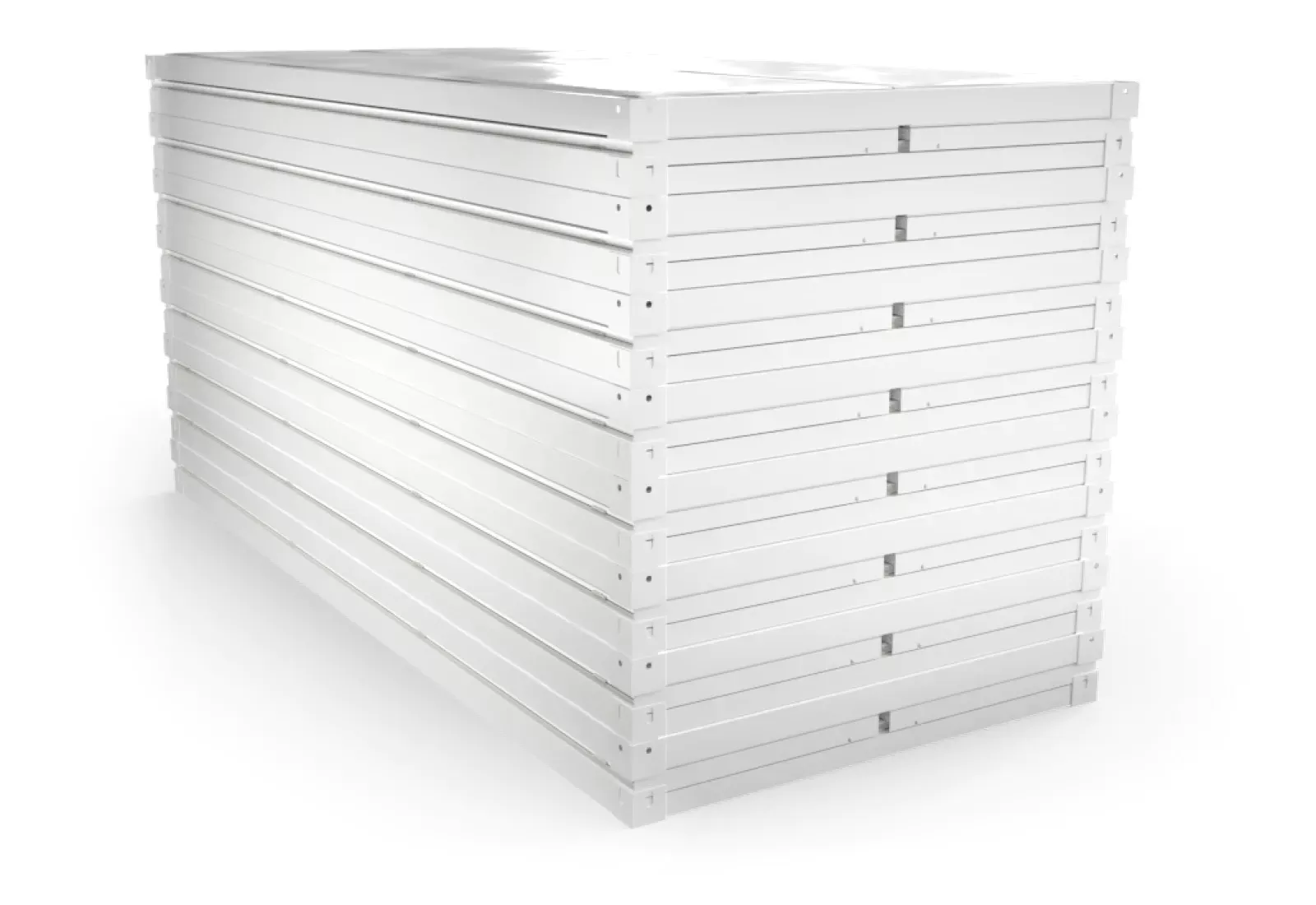

The foldable container house employs a modular design with factory prefabrication, minimizing on-site labor costs. Its transport efficiency (10–12 units per 40HQ container) further saves shipping and handling expenses.

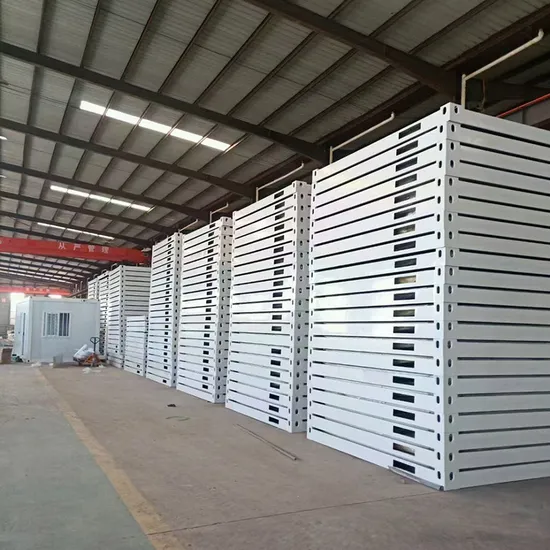

Flat Pack container house Manufacturer & Supplier

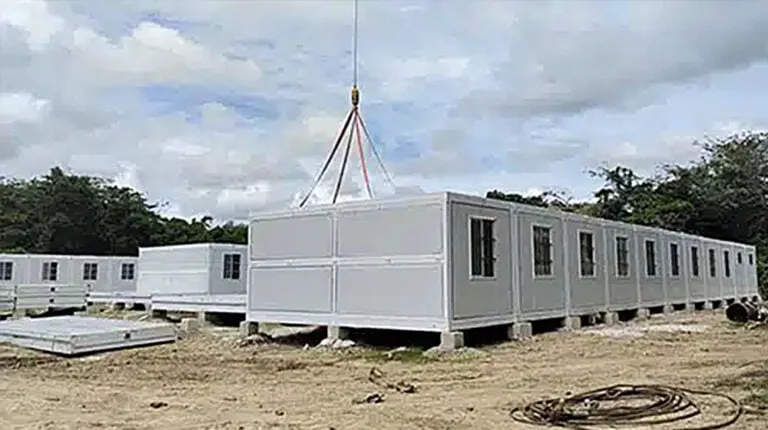

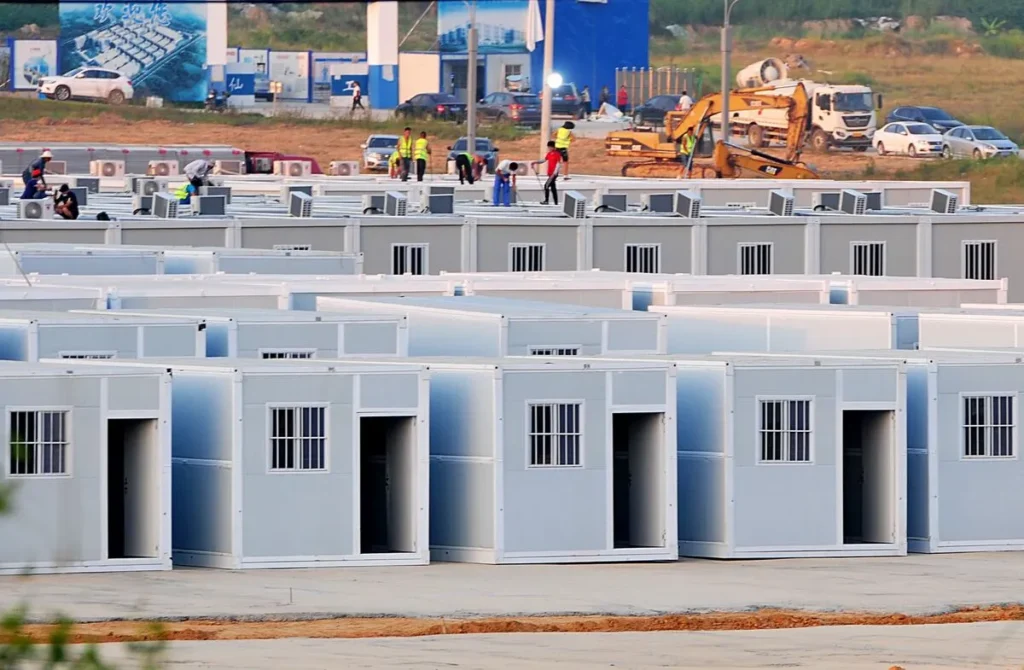

As a professional manufacturer and supplier of foldable container houses, RuiLong possesses robust production capabilities and extensive overseas project experience, delivering high-quality, customizable modular building solutions to global clients. Our foldable container houses have been widely deployed in offices, worker dormitories, student housing, school classrooms, hotels, restaurants, and campsite construction. They have been successfully exported to Ethiopia, the United Arab Emirates, Dubai, Mali, Kenya, Lebanon, Guyana, France, and numerous other countries. Contact us today to receive customized design proposals and quotations. Let RuiLong deliver efficient, flexible, and reliable space solutions for your project.
FAQS
Get Your Custom Container House Solution
Looking for a reliable solution for your labor camp, office, dormitory, or housing project?
RuiLong provides custom-designed detachable container houses that can be quickly assembled, relocated, and expanded to fit your specific needs. Tell us your project details, and we’ll design the most efficient and cost-effective modular housing solution for you.
